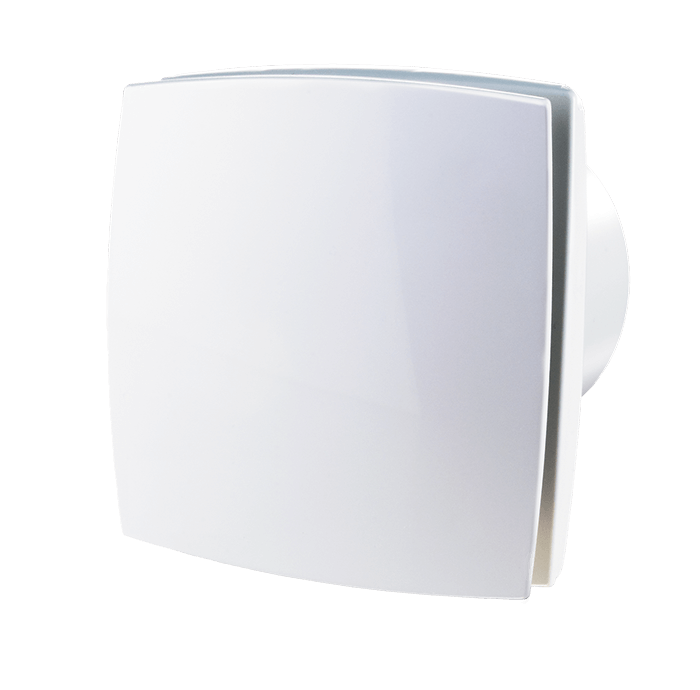

Chico White
The Chico features a quality german made motor and has a modern design that is very popular with interior designers and architects due to its minimalistic form. This exhaust fan can be used in the bathroom, showers, kitchens and other utility spaces. It can be installed in either a ceiling or wall and comes with a back draft shutter to stop warm air escaping or external air coming through the fan.
The Chico features a reliable low watt electric motor. All motors include overheating protection and are designed for continuous operation. The motor is IP34 rated. The casing and impeller are made from high quality, durable ABS plastic. The fan includes a thin plastic backdraft stopper.
Available in 100, 125 or 150 mm sizes
| MODEL | HIGH SPEED (M3/HR) |
|---|---|
| Chico 100 | 88 |
| Chico 125 | 166 |
| Chico 150 | 264 |

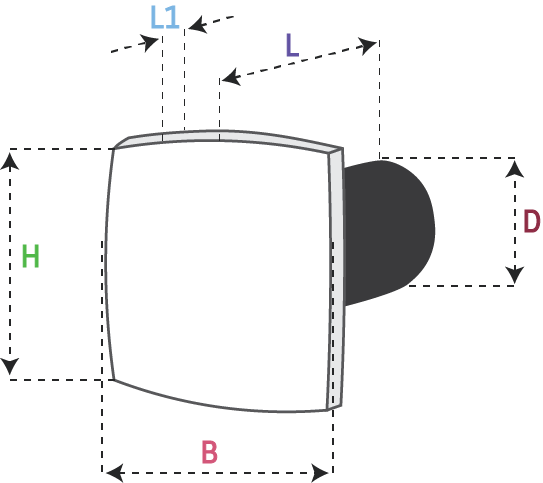

| MODEL | D | B | L | L1 | H |
|---|---|---|---|---|---|
| Chico 100 | 100 | 152 | 126 | 30 | 120 |
| Chico 125 | 125 | 177 | 135 | 34 | 140 |
| Chico 150 | 150 | 206 | 154 | 36 | 165 |
NOISE LEVEL
Sound levels are rated in sones where the lower the rating number, the quieter the fan. Typical economy fans are rated at about 4.0 sones or more while any fan rated 1.0 sones or less is very quiet. Fan noise is affected by the speed and profile or shape of the blade. View the dBA of each model below.
| MODEL | NOISE LEVEL AT 3M (DBA) |
|---|---|
| Chico 100 | 33 |
| Chico 125 | 34 |
| Chico 150 | 37 |
It is recommended to achieve a minimum of 15 air changes per hour in a bathroom to remove excess moisture., To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by the number of air changes to get the required air volume of the fan.
WARRANTY: 2 Year replacement
